SS Steam filter housing
SS Steam filter housing
Ganeshfilter is specialized in fabricating steam filters and we offer a broad range of steam filters for OEM customers, including culinary steam filters, clean steam filters,sanitary steam filters, stainless steel steam filters, and so on.Steam filter is designed and manufactured to remove dirt particles,scale, rust, or other contaminants from the steam. It avoids causing secondary pollution to the next sterilization process and reduces maintenance expenses.
Specifications
| Product Name | S.S steam Filter Housing. |
| Brand | Ganeshfilter |
| Housing Type | Single or Multi cartridge |
| Filter Type | Catridge type |
| Cartridge MOC | PP,PTFE etc. |
| Housing Material | Stainless steel 304/ SS 316 |
| Vent Vale/Drain Valve | SS304 |
| Finish Type | Mirror polishing or electrolytic polishing |
| Cartridge Length | 10", 20", 30", 40" |
| Cartridge Size | OD 2.5" pleated filter |
| No. of Cartridge | Single or Multiple Cartridges |
| Inlet & outlet sizes | 1/4", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 6". |
| Filtration Rating | 0.5, 1 5, 10, 20, 50, 100, 200 to 500µ |
| Filtration Efficiency | 99% |
| Connection | Swing Bolts, Clamp |
| Inlet & outlet connections | BSP(F),NPT(F) and Flanged to ANSI B 16.5 - #150,#300,#600 (Optional) |
| Seal Material | EPDM, Silicon, Buna N, Viton |
| Cartridge End Cap | SOE , DOE,222 O-ring, 226 O-ring |
| Max. Temperature | 130℃ |
| Design Pressure | 1.0 Mpa |
| Max. Pressure | 0.8 Mpa |
| Sterilization | Online sterilization 121±2℃ 30min/time |
| Size/Dimension | Standard or ( As per requirement). |
| Wall Thickness | 2 - 6MM |
| Usage/Application: | It is widely used in filtration of Liquid such as ◼Paints ◼ Lacquers ◼ Inks ◼ Varnish ◼ Resins ◼Adhesives ◼ Oils ◼ Bitumen ◼ Fats ◼ Waxes ◼ Plasticizers ◼ Pharmaceuticals ◼ Food Ingredients ◼ Vegetable Oils ◼ Cooling and Heating Water ◼ Irrigation Systems ◼Cutting Fluids/Oils ◼ High Viscosity Fluid |

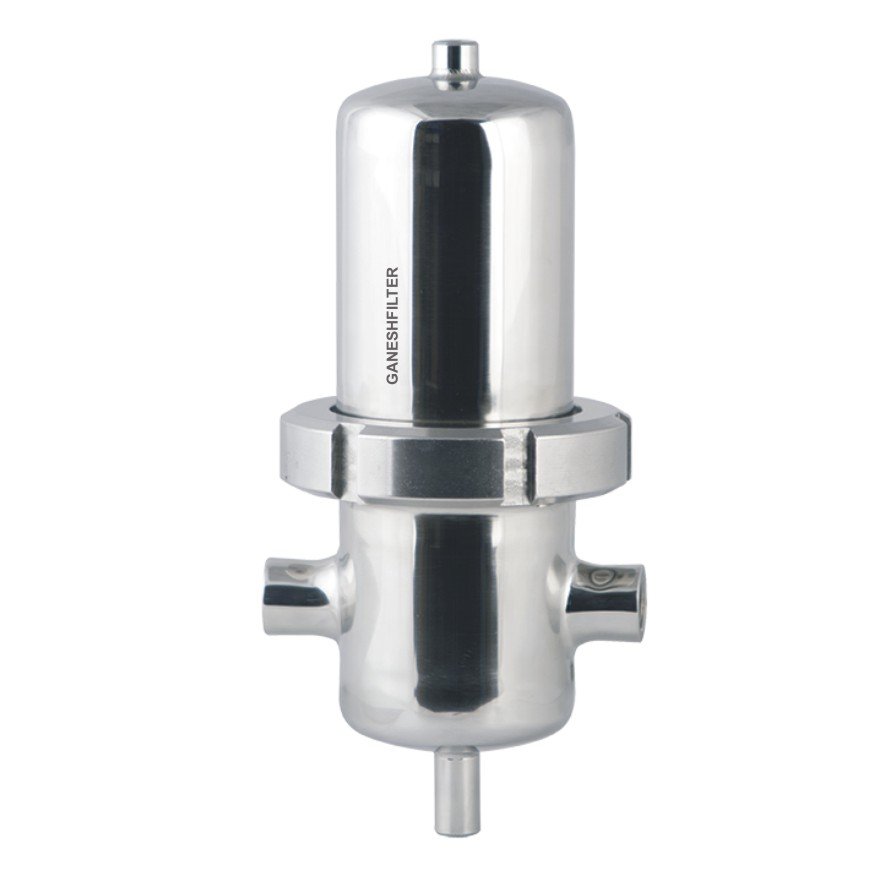

Culinary steam filter
Culinary-steam-filter have been specifically designed to provide culinary grade steam to the food and beverage industry.With polished stainless steel housings and all materials conforming to FDA regulations for direct food contact, these filters are ideally suited for removing contaminants from steam.The pleated stainless steel elements incorporate a positive double o-ring click-lock seal and are 100% integrity tested prior to shipment for reliable performance.This range of filters available with connections from 1/4" to 3" and rated flows from 15 to 1780 lbs/hr.We also offer a broad range of steam filters for OEM customers, including culinary steam filters, clean steam filters,sanitary steam filters, stainless steel steam filters, and so on. Culinary-steam-filter shall be installed at all points-of-use where steam either directly or indirectly comes in contact with food or food contact surfaces.
Specifications
| Product Name | Culinary steam filter |
| Brand | Ganeshfilter |
| design operating pressure range | 0 to 232 psi |
| Available capacity | 60, 90, 120, 180, 270, 360, 480, 720, 1920, 4320, 7690 m3/hr |
| Inlet & outlet sizes | 1/4", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 6". |
| Inlet & outlet connections | BSP(F),NPT(F) and Flanged to ANSI B 16.5 - #150,#300,#600 (Optional) |
| drain & vent connections | 1/4" BSP or NPT |
| Filter housing material | 1.4301 quality 304 stainless steel |
| filter housing polishing | passivated & polished to grade Ra ‹1.6M |
| filter housing seals | aseptic EPDM |
| particle removal | 1µ, 5µ |
| particle removal efficiency | 99% |
| continuous operating temperature range | 212 to 392 Deg.F |
| media material | pleated 316 stainless steel mesh |
| media support & endcap material | SS316 |
| element to housing connection | positive click lock dual silicone o-rings |
| differential pressure - clean | 1.0 psid |
| Usage/Application: | It is widely used in filtration of Liquid such as ◼ Paints ◼ Lacquers ◼ Inks ◼ Varnish ◼ Resins ◼ Adhesives ◼ Oils ◼Bitumen ◼ Fats ◼ Waxes ◼ Plasticizers ◼ Pharmaceuticals ◼ Food Ingredients ◼ Vegetable Oils ◼ Cooling and Heating Water ◼ Irrigation Systems ◼ Cutting Fluids/Oils ◼ High Viscosity Fluid |

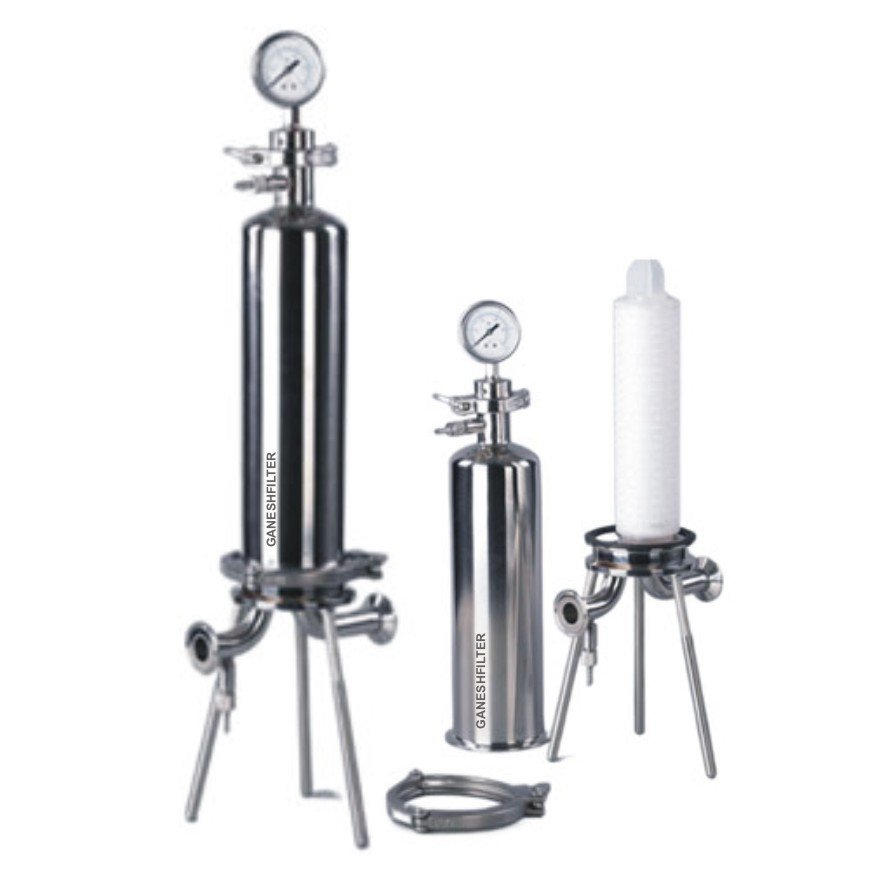

Sanitary Steam filter
Sanitary steam filter remove contaminants, moisture, and other particles from steam that will touch food and for final filtering in pharmaceutical, biotech, and electronics applications. The cartridge in these housings filters out 98% of particles as small as 1 micron and 100% of particles as small as 2 microns. Thats why they meet 3-As accepted practice for creating culinary-grade steam, which is often used in steam-in-place (SIP) cycles to sanitize equipment, and for applications such as blanching. They are FDA compliant for direct contact with food, and also meet pharmaceutical equipment design standards.Housing and a filter element, is mostly made of 304 or 316L stainless steel, and the steam filter cartridge is made of sintered powder or pleated sintered metal. Steam filters are widely applied to the food, dairy, and beverage industry, chemical and pharmaceutical industry, metal process, power generation, and automotive industry for the process steam and culinary steam application.
Specifications
| Product Name | Sanitary steam filter |
| Brand | Ganeshfilter |
| design operating pressure range | 16 bar @ 200℃ (232 psig @ 392℉) |
| Available capacity | 60, 90, 120, 180, 270, 360, 480, 720, 1920, 4320, 7690 m3/hr |
| Inlet & outlet sizes | 1/4", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 6". |
| Inlet & outlet connections | BSP(F),NPT(F) and Flanged to ANSI B 16.5 - #150,#300,#600 (Optional) |
| drain & vent connections | 1/4" BSP or NPT |
| Filter housing material | 1.4301 quality 304 stainless steel |
| filter housing polishing | passivated & polished to grade Ra ‹1.6M |
| filter housing seals | aseptic EPDM |
| particle removal | 1µ, 5µ,25µ, 50µ |
| particle removal efficiency | 99% |
| continuous operating temperature range | 212 to 392 Deg.F |
| media material | pleated 316 stainless steel mesh |
| media support & endcap material | SS316 |
| element to housing connection | positive click lock dual silicone o-rings |
| differential pressure - clean | 1.0 psid |
| Usage/Application: | It is widely used in filtration of Liquid such as ◼ Paints ◼ Lacquers ◼ Inks ◼ Varnish ◼ Resins ◼ Adhesives ◼ Oils ◼Bitumen ◼ Fats ◼ Waxes ◼ Plasticizers ◼ Pharmaceuticals ◼ Food Ingredients ◼ Vegetable Oils ◼ Cooling and Heating Water ◼ Irrigation Systems ◼ Cutting Fluids/Oils ◼ High Viscosity Fluid |
Steam line filter
Steam line filter is an important equipment for your food-grade industry process. It can effectively eliminate dirt, scale, rust particles to get clean culinary steam and protect your downstream filters and equipment. Housing and a filter element, is mostly made of 304 or 316L stainless steel, and the steam filter cartridge is made of sintered powder or pleated sintered metal. Steam filters are widely applied to the food, dairy, and beverage industry, chemical and pharmaceutical industry, metal process, powder generation, and automotive industry for the process steam and culinary steam application.
Specifications
| Product Name | Steam Line Filter |
| Brand | Ganeshfilter |
| design operating pressure range | 16 bar @ 200℃ (232 psig @ 392℉) |
| Available capacity | 60, 90, 120, 180, 270, 360, 480, 720, 1920, 4320, 7690 m3/hr |
| Inlet & outlet sizes | 1/4", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 6". |
| Inlet & outlet connections | BSP(F),NPT(F) and Flanged to ANSI B 16.5 - #150,#300,#600 (Optional) |
| drain & vent connections | 1/4" BSP or NPT |
| Filter housing material | 1.4301 quality 304 stainless steel |
| filter housing polishing | passivated & polished to grade Ra ‹1.6M |
| filter housing seals | aseptic EPDM |
| particle removal | 1µ, 5µ,25µ, 50µ, 100µ, 250µ |
| particle removal efficiency | 99% |
| continuous operating temperature range | 212 to 392 Deg.F |
| media material | pleated 316 stainless steel mesh |
| media support & endcap material | SS316 |
| element to housing connection | positive click lock dual silicone o-rings |
| differential pressure - clean | 1.0 psid |
| Usage/Application: | It is widely used in filtration of Liquid such as ◼ Paints ◼ Lacquers ◼ Inks ◼ Varnish ◼ Resins ◼ Adhesives ◼ Oils ◼Bitumen ◼ Fats ◼ Waxes ◼ Plasticizers ◼ Pharmaceuticals ◼ Food Ingredients ◼ Vegetable Oils ◼ Cooling and Heating Water ◼ Irrigation Systems ◼ Cutting Fluids/Oils ◼ High Viscosity Fluid |
Steam Sterile filter
Steam filter for sterlizers have been used in clean culinary steam line,steam filters for sterilizers are absolutely safe for final products,With dirt particles, scale, rust contaminants, culinary steam can cause harm to the next to sterilize filter, it pollutes your products and increases the maintenance costs, so purifying the steam is essential for your sterilizers. The steam filter housing is made of 304/316L stainless steel, and the filter element is made of porous sintered stainless steel or pleated sintered metal.steam filters for sterilizers can help for we have reached tech breakthroughs and numerous successful applications. It can effectively clean settled particles for better sterilization by utilizing steam heat. Now, they are widely used in the dairy, food, and drinks industries. This range of filters available with connections from 1/4" to 8" and rated flows from 15 to 18,500 lbs/hr.We also offer a broad range of steam filters for OEM customers, including culinary steam filters, clean steam filters,sanitary steam filters, stainless steel steam filters, and so on.
Specifications
| Product Name | Steam filter sterile filtration |
| Brand | Ganeshfilter |
| design operating pressure range | 0 to 232 psi |
| Available capacity | 60, 90, 120, 180, 270, 360, 480, 720, 1920, 4320, 7690 m3/hr |
| Inlet & outlet sizes | 1/4", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 6". |
| Inlet & outlet connections | BSP(F),NPT(F) and Flanged to ANSI B 16.5 - #150,#300,#600 (Optional) |
| drain & vent connections | 1/4" BSP or NPT |
| Filter housing material | 1.4301 quality 304 stainless steel |
| filter housing polishing | passivated & polished to grade Ra ‹1.6M |
| filter housing seals | aseptic EPDM |
| particle removal | 1µ, 5µ |
| particle removal efficiency | 99% |
| continuous operating temperature range | 212 to 392 Deg.F |
| media material | pleated 316 stainless steel mesh |
| media support & endcap material | SS316 |
| element to housing connection | positive click lock dual silicone o-rings |
| differential pressure - clean | 1.0 psid |
| Usage/Application: | It is widely used in filtration of Liquid such as ◼Paints ◼ Lacquers ◼ Inks ◼ Varnish ◼ Resins ◼Adhesives ◼ Oils ◼ Bitumen ◼ Fats ◼ Waxes ◼ Plasticizers ◼ Pharmaceuticals ◼ Food Ingredients ◼ Vegetable Oils ◼ Cooling and Heating Water ◼ Irrigation Systems ◼Cutting Fluids/Oils ◼ High Viscosity Fluid |

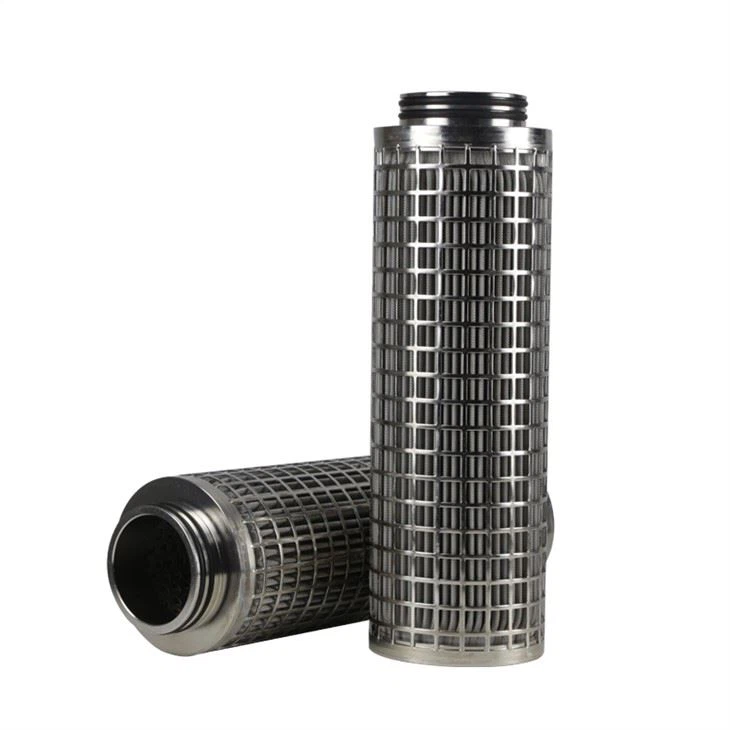

Replacement and Custom steam filter elements
- Steam filter element is applied to the food and drinks industry,pharmaceutical industry, chemical industry, aseptic packing,fermentation process, brewery industry, dairy industry, and electronic industry.
- Steam filter element is available in different filtration degrees ranging from 1 micron to 25 microns based on your application. Meanwhile, you can designate its material and size to fit your steam filter housing.Elements can be regenerated by detergents or solvents in an ultrasonic bath. It is recommended that you clean your steam filter element frequently to keep high filtration efficiency.
- Constructed of stainless steel, these corrosion-resistant cartridges can be cleaned for repeated use. They are pleated, which provides a large surface area for high debris retention. Use them in a filter housing to reduce contaminants in your steam line.
- We also offer high-quality, replacements steam filter elements to Pall, Parker-Domnick Hunter,Donaldson, etc
Specifications
| Product Name | Steam Filter Cartridges |
| Brand | Ganeshfilter |
| Product Type | Steam Filter |
| Application | Steam Filtration, Culinary Grade Steam |
| Product Style | Cartridge Type |
| Filter Material | 316L Stainless Steel |
| For Fluid Type | Steam |
| Micron Raing | 1 or 25µ (Pleated) 1 or5µ (Sintered) |
| Length | 2 to 30 Inch ( 50 to 750MM ) |
| Filter construction | Pleated or Sintered |
| Material of Construction: | Stainless steel 316L |
| Pressure Differential | The maximum differential pressure in direction of flow(outside to in)is 3.5 barg(50.76 psig) at 60 ℃(140 Deg.F) |
| Maximum Pressure Differential | 10 Barg( 145.03 psig) |
| Operating Temperature : | -75 ℃ to 200 ℃ ( -103 Deg.F to 392 Deg.F) |
| Seal Material | EPDM (Standard) ,Silicon,Viton |
| Operating Temperature : | -75 ℃ to 200 ℃ ( -103 Deg.F to 392 Deg.F) |
| Usage/Application: | Steam filters are widely applied to the food, dairy, and beverage industry, chemical and pharmaceutical industry, metal process, powder generation, and automotive industry for the process steam and culinary steam application. |
