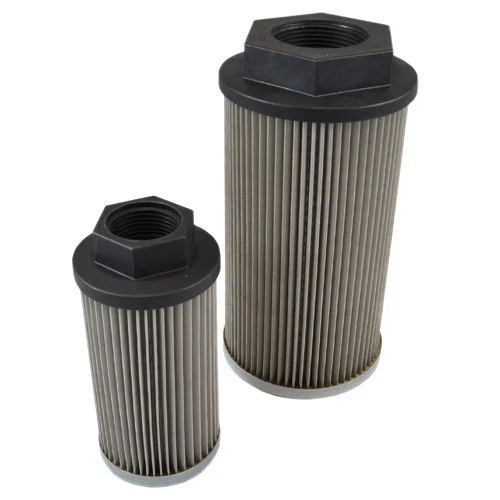

Hydraulic suction strainer

suction filter precedes a hydraulic pump at the suction port or otherwise submerged in the reservoir mostly attached along the suction line before the pump. In this case, a rather large filter is preferable to handle huge flow rate and miniaturize larger pressure differential. This type of filter is designed with a higher micron rating that buffers the pump from harmful hydraulic fluid contaminants that circulates within the medium.

Specifications

MODEL Thread OD H1 H2 A/F Weight
BSP/NPT mm mm mm mm kg
B012 3/8" 50 98 16 28 0.17
B015 1/2" 50 98 16 28 0.17
B025 1/2" 70 113 16 28 0.27
B030 3/4" 70 115 18 42 0.27
B045 3/4" 70 160 18 42 0.39
B050 1" 70 160 18 42 0.35
B075 1" 99 145 18 42 0.54
B095 1 1/4" 99 148 20 60 0.63
B0120 1 1/4" 99 239 20 60 0.95
B0150 1 1/2" 99 239 20 60 0.91
B0180 1 1/2" 130 174 20 60 0.98
B0220 2" 130 162 13 80 1.00
B0280 2" 130 272 13 80 1.60
B300 2 1/2" 130 281 20 90 1.68
B380 2" 130 322 13 80 1.80
B430 3" 130 335 22 106 1.98
Usage/Application: ◼This filter is suitable for oil ◼mining◼metallurgy◼electric powe◼water conservancy engineering ◼ industries hydraulic lubrication systems ◼Mobile hydraulics ◼Factory equipment ◼Power generation ◼Agriculture and construction ◼Material handling ◼Wind◼Oil and gas
Note:Above models of Suction strainers are available without magnets.Strainer with magnets are options
single steam filter housing
Return line filter

Hydraulic Return line filter

Return Line Filter Element are used for return line filter are installed in the oil return pipeline of the hydraulic system to remove metal powder and other impurities from the oil, keep the oil flowing back to the oil tank clean, and facilitate the circulation of oil in the system.

Specifications

Product Name Hydraulic Return line Filter Element
Brand Ganeshfilter
Replacement filter equivalent to: Hydac,Eaton(Internormen),Mahle,Bosch Rexroth (Eppensteiner},Pall,Rexroth,Donalson,MP Filtri,EPE,parker,Argo hytos and many more.
Filter Type Hydraulic oil filter
End caps, M.O.C SS 304/ SS 316/ G.I ,CR etc
Filter Material S.S wire mesh,micro Glass fiber, cellulose paper etc.
Filtration Rating 3, 5, 10, 20 , 25,50,100 micron or according to your requirement
Filtration Efficiency 99%
Pressure stability 10bar-210bar
Temperature range -30℃-110℃
Size/Dimension Standard or ( As per requirement)
Seal Type O-ring or flat gasket.
Seal Material silicon,NBR, EPDM, Viton, PTFE.
Surface treatment Mirror polishing or electrolytic polishing or powder coated
Usage/Application: ◼This filter is suitable for oil ◼mining◼metallurgy◼electric powe◼water conservancy engineering ◼ industries hydraulic lubrication systems ◼Mobile hydraulics ◼Factory equipment ◼Power generation ◼Agriculture and construction ◼Material handling ◼Wind◼Oil and gas
pressure line filter

Hydraulic Pressure Line Filter

The pressure line filter element is the central component of industrial filters. The actual filtration process takes part in the filter element. The main filter variables, such as retention capacity, dirt holding capacity and pressure loss are determined by the filter elements and the filter media used in them.

Specifications

Product Name Pressure Line Filter Element
Brand Ganeshfilter
Replacement filter equivalent to: Hydac,Eaton(Internormen),Mahle,Bosch Rexroth(Eppensteiner},Pall,Rexroth,Donalson,MP Filtri,EPE,parker,Argo hytos and many more.
Filter Type Hydraulic oil filter
End caps, M.O.C SS 304/ SS 316/ G.I ,CR etc
Filter Material S.S wire mesh,micro Glass fiber, cellulose paper etc.
Filtration Rating 3, 5, 10, 20 , 25,50,100 micron or according to your requirement
Filtration Efficiency 99%
Pressure stability 10bar-210bar
Temperature range -30℃ to 110℃
Size/Dimension Standard or ( As per requirement)
Seal Type O-ring or flat gasket.
Seal Material Silicon,NBR, EPDM, Viton, PTFE.
Usage/Application: ◼This filter is suitable for oil ◼mining◼metallurgy◼electric powe◼water conservancy engineering ◼ industries hydraulic lubrication systems ◼Mobile hydraulics ◼Factory equipment ◼Power generation ◼Agriculture and construction ◼Material handling ◼Wind◼Oil and gas
