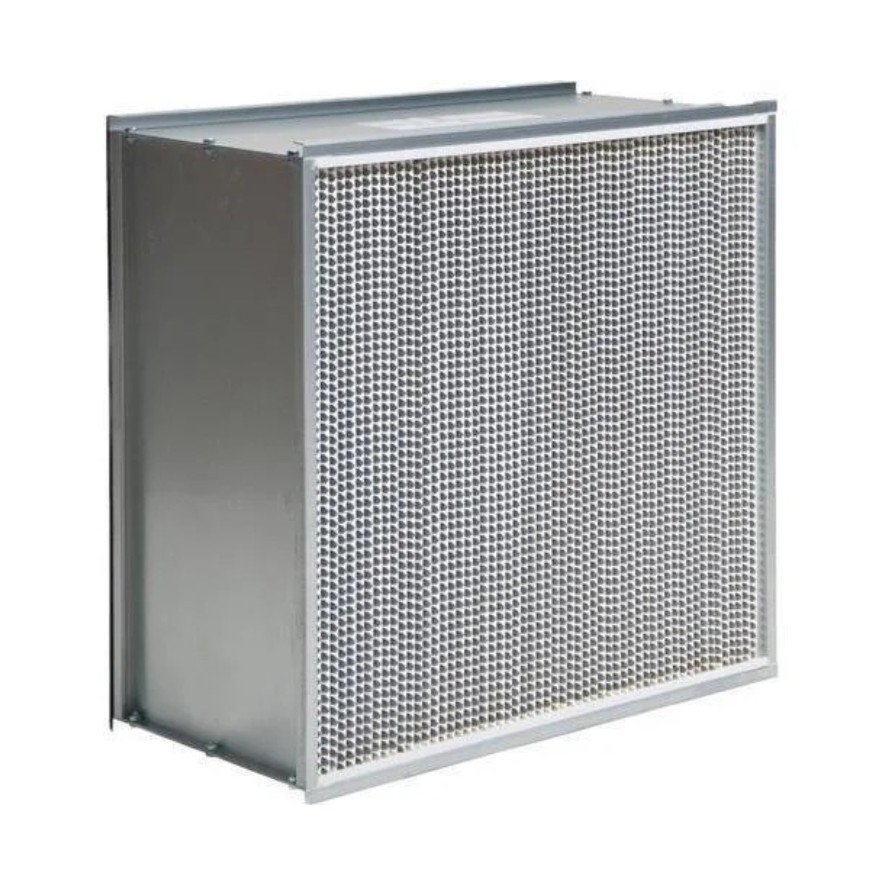

Hepa filter

Cleanroom filtration is required in a broad range of industrial, semiconductor, nuclear, pharmaceutical, and biomedical applications. Multiple product configurations are used including panels, compact filters, and deep-pleat applications.

According to the FDA, HEPA filters have Clean efficiency of 99.97 % to 99.99 % when tested using the dioctyl phthalate (DOP) test with a particle size of 0.3 microns.This means that these filters can remove all yeast, mold, bacteria and other particles that are larger than 0.3 microns. The FDA recommends use HEPA filters in areas where RF-RTE foods are processed or exposed and others.

Specifications

MODEL Overall Dim Air Flow Speed Air flow/Resistance. Final Resis.
W x H x D M3/Hr/pa m/s M3/hr/pa M3/hr/pa pa
HEPA10 610x1220x120 1500/230 0.55 2200/315 2400/375 500
HEPA20 610x610x120 1000/230 0.75 750/170 1200/275 500
HEPA30 610x915x150 1500/230 0.75 1100/170 1800/275 500
HEPA40 484x484x220 1000/230 1.17 630/145 1550/350 500
HEPA50 610x610x220 1600/230 1.18 1000/145 2500/350 500
HEPA60 610x610x292 2200/230 1.64 1550/150 3400/350 500
HEPA70 610x610x292 3300/105 2.46 2500/80 4000/125 500
HEPA80 610x915x292 4950/106 2.46 3800/80 6000/125 500
Hepa Filter Efficiency ,EN1822 ◼Model -HEPA10 TO HEPA60 is H13
◼Model -HEPA70 TO HEPA80 is F8
Usage/Application: ◼HEPA filters are used for terminal filtration in environments and industries requiring◼ Extremely high level levels of cleanliness.◼ Electronics and semiconductor ◼ Manufacturing ◼ Precision machinery ◼ Pharmaceuticals ◼ Hospitals ◼ Food processing.
Hepa filter
Pocket filter

Pocket filter

Due to the pocket formation, pocket filters create wide open maximum air entrance into each pocket with minimum resistance. Total pocket inflation results in complete use of media area and offer high dust handling and long service life.

Ganeshfilter offer glass fiber and synthetic media with efficiency M5(Merv9), M6 (Merv 11), F7 (Merv13) ,F8 (Merv14) and F9 (MERV15) in galvanized steel, extruded aluminum or plastic frame. Formation of the pockets (by span stitching or sonic welding) creates a wide open entrance into each pocket. Uniformly shaped channels permit maximum air flow with minimum resistance. Total pocket inflation results in complete use of the media, high dust holding capacity and long service life .

Specifications

MODEL Dimensions,MM Flow Resis(Pa) Dust Hold Type
H W D pockets M3/Hr Ini Final gm
S-01 295 595 500 3 1400 50 250-300 400 F5
S-02 295 595 500 3 1400 65 250-300 350 F6
S-03 295 595 500 3 1400 80 300-400 320 F7
S-04 295 595 500 3 1400 105 300-400 270 F8
S-05 295 595 500 3 1400 120 400-450 250 F9
S-06 595 595 500 3 1550 50 250-300 460 F5
S-07 595 595 500 3 1550 65 250-300 410 F6
S-08 595 595 500 3 1550 80 300-400 360 F7
S-09 595 595 500 3 1550 105 300-400 310 F8
S-10 595 595 500 3 1550 120 400-450 280 F9
S-11 595 595 500 5 2300 50 250-300 690 F5
S-12 595 595 500 5 2300 65 250-300 610 F6
S-13 595 595 500 5 2300 80 300-400 540 F7
S-14 595 595 500 5 2300 105 300-400 460 F8
S-15 595 595 500 5 2300 120 400-450 420 F9
S-16 595 595 500 6 2700 50 250-300 800 F5
Media Non-woven
Pocket type Sewing bag,ultrasonic bag
Frame aluminum/galvanized/stainless steel/wood frame
Efficiency 45%~95% 0.5micron
max.temperature 80℃
max.humidity 100%
optional aluminum 17~50mm
optional plastic 21mm
Usage/Application: ◼Ccentral air conditioning ventilation systems◼ pharmaceuticals◼ hospitals◼electronics ◼food processing ◼ the automobile industry ◼hotels and office building ◼ etc. ◼They can also be used for secondary filtration

Pre filter

Pre filter with a frame made of galvanized sheet for coarse filtration in mechanical ventilation, recuperation and air conditioning units.

The M5 Iso Corase 90% pleated cassette filter allows you to capture 90% of coarse particles from the air, i.e. leaves, insects, hair, sand, ash, fine sand, plant spores, pollen and other impurities larger than 10 Micron.

It is included in the coarse filtration pre-filters,thus this filter allows for basic air filtration in mechanical ventilation systems with heat recovery, called recuperation. Our filters are made of materials that meet high energy classes to ensure the lowest possible consumption of electricity by your recuperator.

Specifications

Pleated Filter - BP Series - 2" Thickness
MODEL Dimensions
Sizes in Inches Actual Size in mm Flow in M3/Hr
BP-25025050 10 x 10 242 x 242 504
BP-30030050 12 x 12 289 x 289 720
BP-37537550 15 x 15 369 x 369 1188
BP-45045050 18 x 18 445 x 445 1728
BP-50025050 20 x 10 495 x 242 1045
BP-50040050 20 x 16 495 x 394 1728
BP-50050050 20 x 20 495 x 495 2160
BP-62540050 25 x 16 620 x 394 2160
BP-62550050 25 x 20 620 x 495 2736
BP-60030050 24 x 12 594 x 289 1550
BP-60050050 24 x 20 594 x 495 2628
BP-60060050 24 x 24 594 x 594 3200
Pleated Filter - BP Series - 4" Thickness
BP-250250100 10 x 10 242 x 242 648
BP-300300100 12 x 12 289 x 289 900
BP-375375100 15 x 15 369 x 369 1500
BP-450450100 18 x 18 445 x 445 2160
BP-500250100 20 x 10 495 x 242 1300
BP-500400100 20 x 16 495 x 394 2088
BP-500500100 20 x 20 495 x 495 2628
BP-625400100 25 x 16 620 x 394 2600
BP-625500100 25 x 20 620 x 495 3275
BP-600300100 24 x 12 594 x 289 1840
BP-600500100 24 x 20 594 x 495 3125
BP-600600100 24 x 24 594 x 594 3780
Metal Washable Filter - BW Series - 1" Thickness
BW-25025025 10 x 10 242 x 242 440
BW-30030025 12 x 12 289 x 289 612
BW-37537525 15 x 15 369 x 369 972
BW-45045025 18 x 18 445 x 445 1450
BW-50025025 20 x 10 495 x 242 900
BW-50040025 20 x 16 495 x 394 1450
BW-50050025 20 x 20 495 x 495 1800
BW-62540025 25 x 16 620 x 394 2000
BW-62550025 25 x 20 620 x 495 2270
BW-60030025 24 x 12 594 x 289 1224
BW-60050025 24 x 20 594 x 495 2125
BW-60060025 24 x 24 594 x 594 2600
Metal Washable Filter - BW Series - 2" Thickness
BW-25025050 10 x 10 242 x 242 440
BW-30030050 12 x 12 289 x 289 612
BW-37537550 15 x 15 369 x 369 972
BW-45045050 18 x 18 445 x 445 1450
BW-50025050 20 x 10 495 x 242 900
BW-50040050 20 x 16 495 x 394 1450
BW-50050050 20 x 20 495 x 495 1800
BW-62540050 25 x 16 620 x 394 2000
BW-62550050 25 x 20 620 x 495 2270
BW-60030050 24 x 12 594 x 289 1224
BW-60050050 24 x 20 594 x 495 2125
BW-60060050 24 x 24 594 x 594 2600
BP-Series Clasifications : G4 to EN779
Opp.Temp :100 ℃
PD at clean : 20 Pa 75 Pa **
BP-Series Clasifications : G2 to EN779
Opp.Temp :100 ℃
PD at clean : 8 Pa to 25 Pa **
Usage/Application: ◼ Pre-treatment filter in air conditioning ◼heating and ventilation installations ◼Filters characterized by high efficiency with low pressure drops ◼They can be used in schools ◼offices ◼tetras ◼swimming pools ◼hospitals ◼shopping malls ◼ hotels ◼homes ◼paint shops ◼ food and pharmaceutical industries ◼machine industries ◼ Conveyance of hygroscopic products ◼ Paint spray and Powder coating
Pre filter

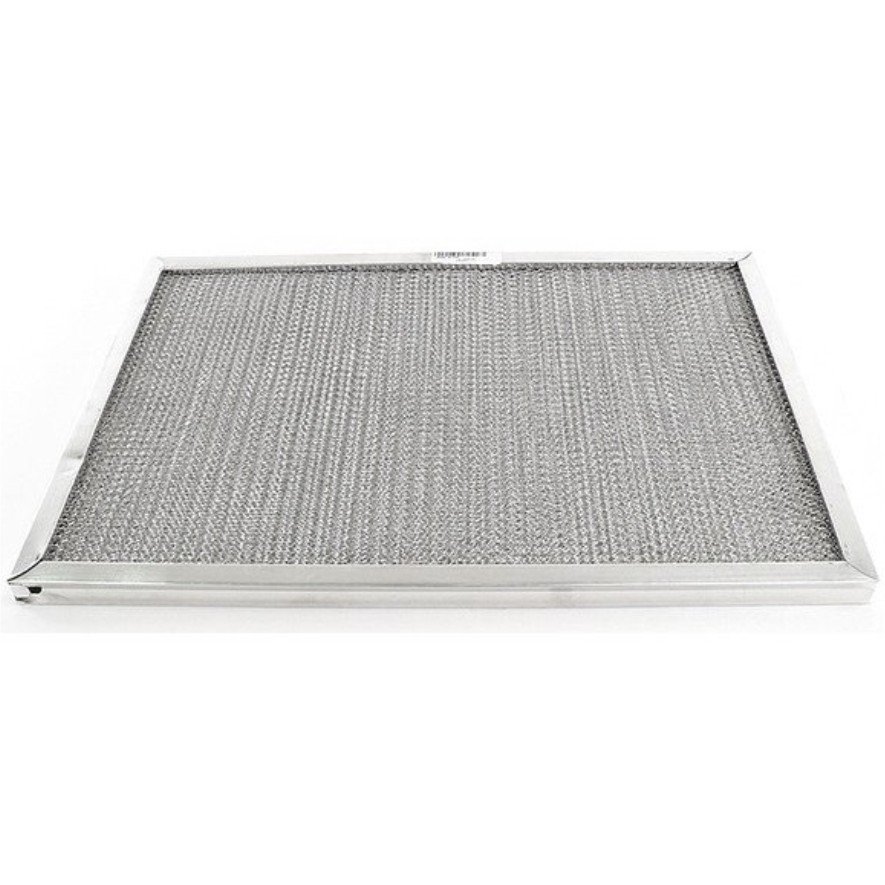

Stainless steel filter

Stainless steel filter

The 304 Stainless Steel Filter is the heaviest mesh filter available and is designed for applications that require the utmost in filterability. Made from 304 stainless steel, this filter can hold up to the toughest conditions, in air applications. It can withstand harsh chemicals when it comes to cleaning.

The 304 Stainless Steel Filter is the heaviest mesh filter available. Made from 304 stainless steel, this filter can hold up to the toughest conditions, in both air and grease applications. The frame is made of heavy 304 stainless steel. It can withstand harsh chemicals when it comes to cleaning. The 304 Stainless Steel Filter is designed for applications that require the utmost in filterability. Stainless steel will withstand extreme heat conditions. The maximum temperature range on the 304 Stainless Steel Filter is 900 degrees F.

Specifications

MODEL Dimensions in Inches Packs Air Flow Resis(Pa) Efficiency Dust Hold
H W D M3/Hr Initial Final Ashrae Grams
B-001 16 20 1 3 1400 50 250-300 95% 400
B-002 16 25 1 3 1400 65 250-300 95% 350
B-003 20 20 1 3 1400 80 300-400 95% 320
B-004 20 25 1 3 1400 105 300-400 95% 270
B-005 24 24 1 3 1400 120 400-450 95% 250
B-006 10 20 2 3 1550 50 250-300 95% 460
B-007 12 24 2 3 1550 65 250-300 95% 410
B-008 16 20 2 3 1550 80 300-400 95% 360
B-009 16 25 2 3 1550 105 300-400 95% 310
B-010 16 25 2 3 1550 120 400-450 95% 280
B-011 20 20 2 5 2300 50 250-300 95% 690
B-012 20 20 2 5 2300 65 250-300 95% 610
B-013 20 25 2 5 2300 80 300-400 95% 540
B-014 24 24 2 5 2300 105 300-400 95% 460
